Gas Metal Melting Furnace is used to melt copper, brass,gold, silver,aluminum, zinc, tin and other metals with melting points below 1300 ° C（2372 ° F）. Suitable for most fuels, liquefied gas，LPG, propane, etc. But it can not melt steel, iron.

Many other people’s single burner furnace has a problem, the flame can only heat one side of crucible strongly ,especially if you use a big size crucible, the flame can only reach to 1/3 or 1/2 wall of the crucible, the opposite side has no flame. So we often saw that some part of metal in crucible has been melted, but some other part is not yet. It means you need longer time and more gas to melt whole pot of metal, my dual burners have solved this problem by heating 2 sides of crucible at the same time, it can save 50% time and 20% gas cost. As we know, 40%–70% gas energy is actually escaping in heating process, that is a big waste . So if you melt fast, you save more propane cost.

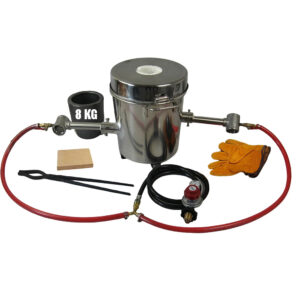

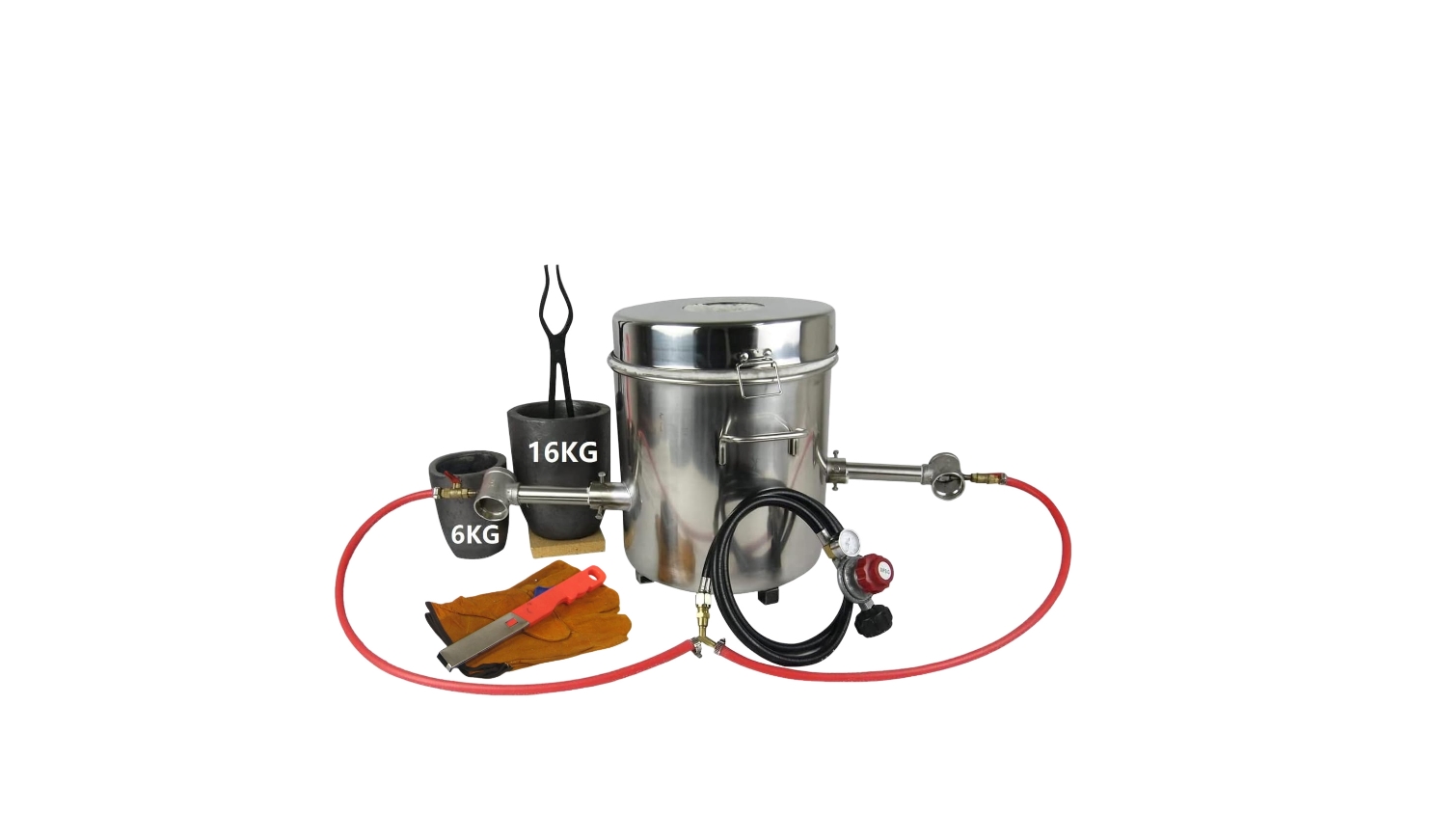

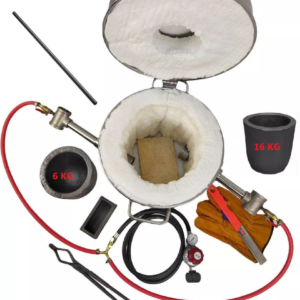

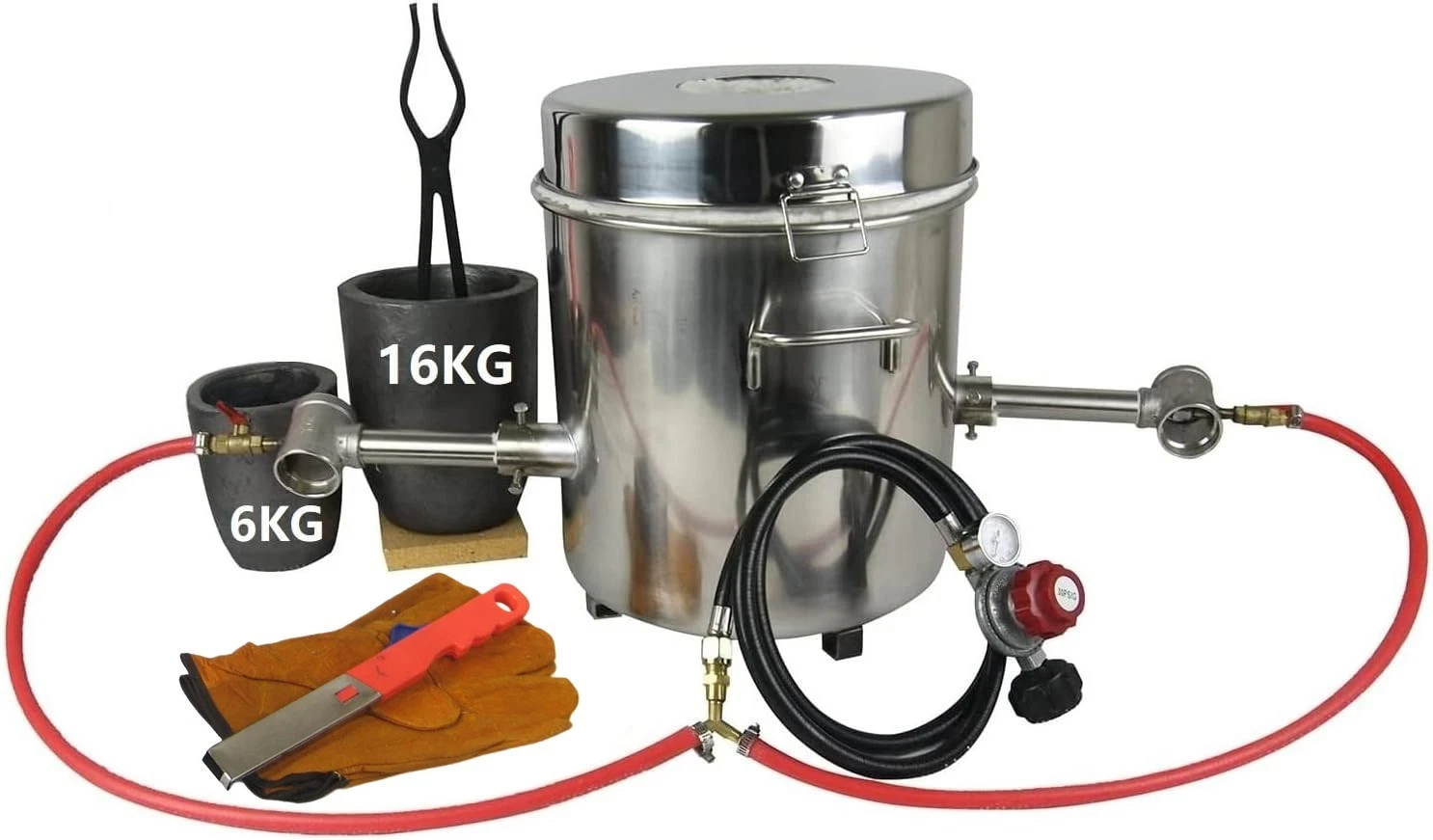

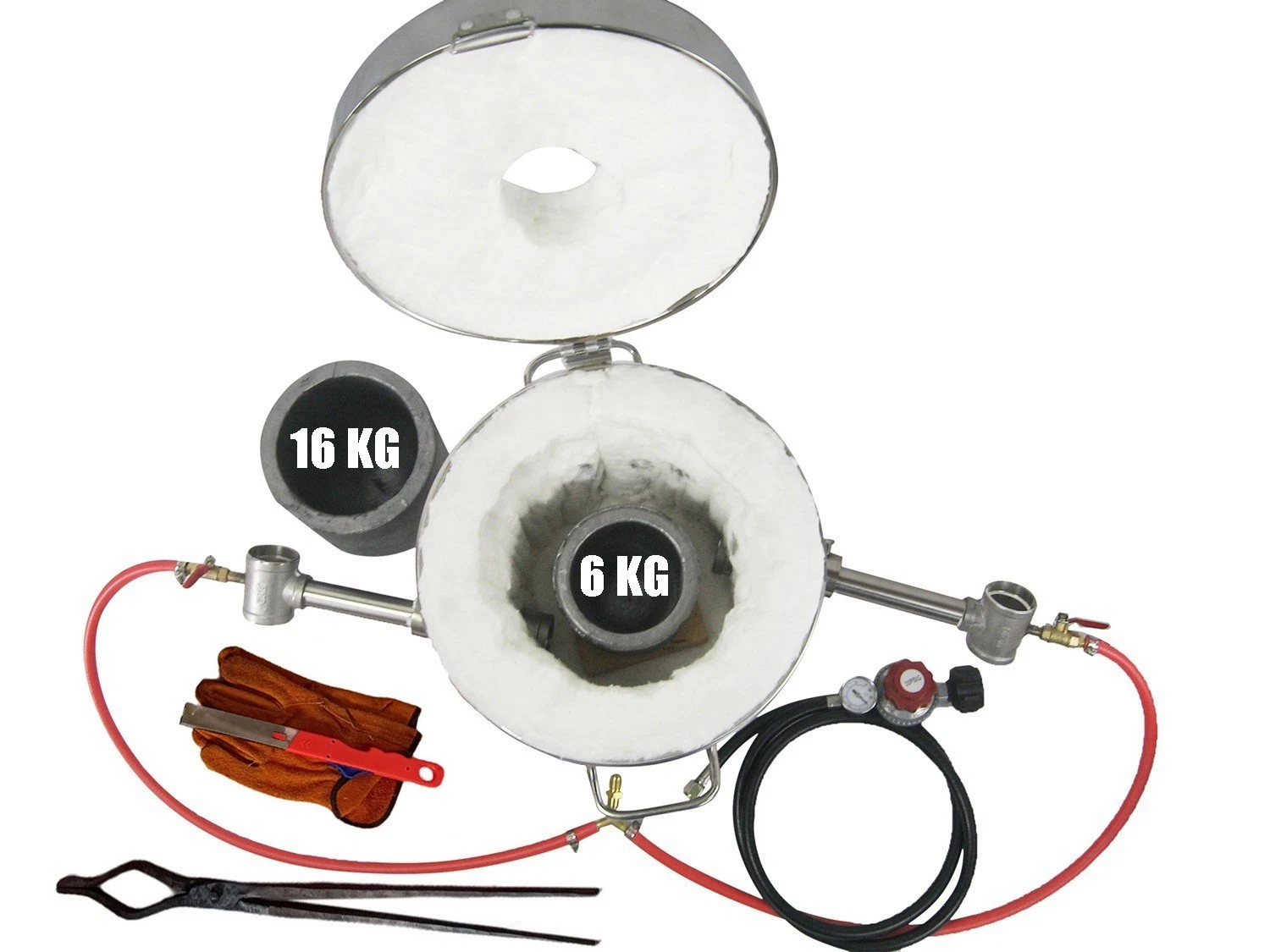

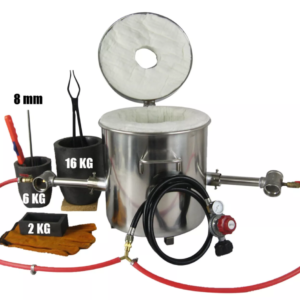

Package includes all of items in my 1st photo,including crucible,casting mold,40cm tong ,gloves,fire brick,hose ,instruction manual.
1. Furnace body is made of stainless steel( 1mm thick), no need painting, highly resistant to corrosion, superior strength and durability; Can bear the weight of one adult.
2. Dual gas burners are made of stainless steel,each burner is around 100,000 BTU ,fast melting can save 50% time and 20% gas cost ;

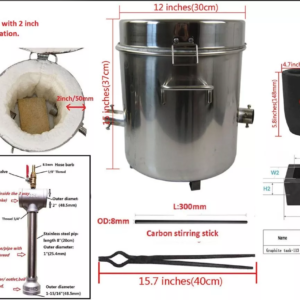

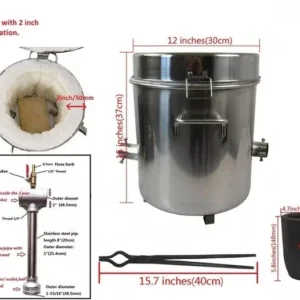

3. Outside Dimensions : 12″ diameter x 15″ height (30cm x 37cm);
4. Inner Dimensions: 8″ diameter x 10″Height (20cm x 24cm);

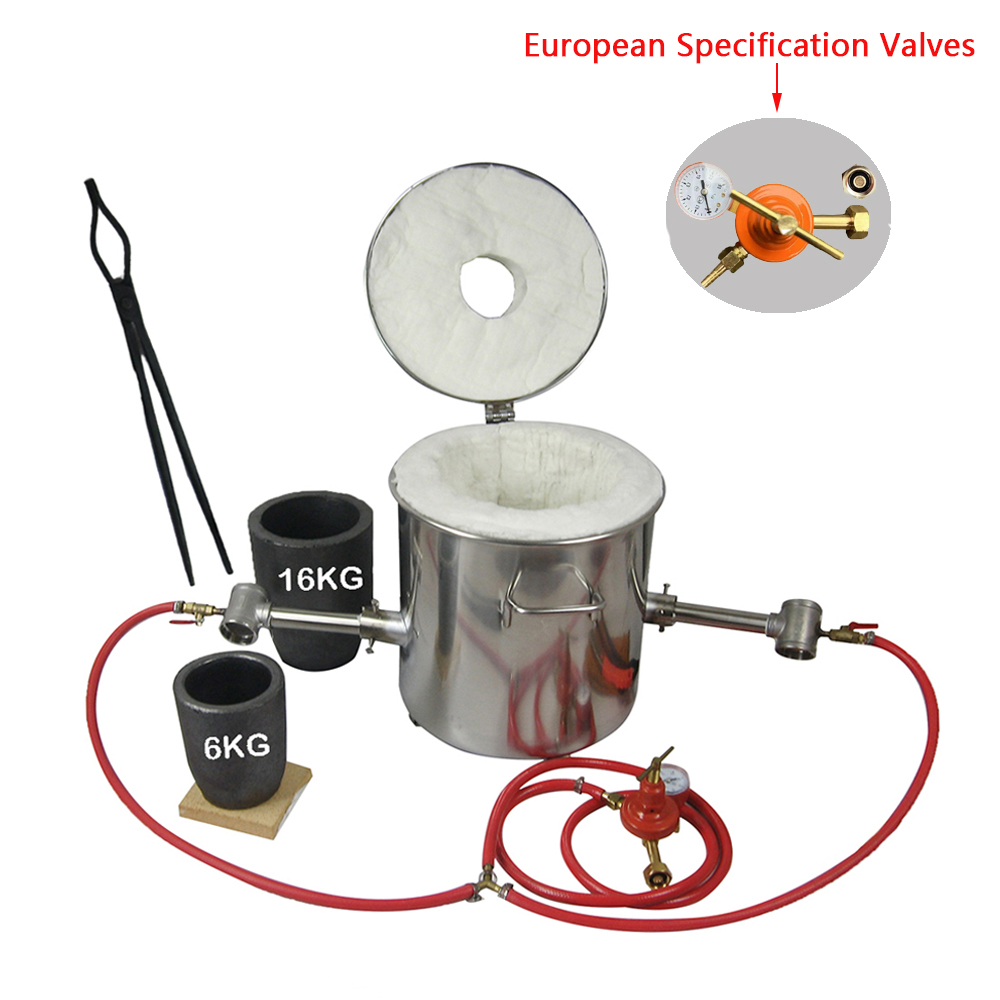

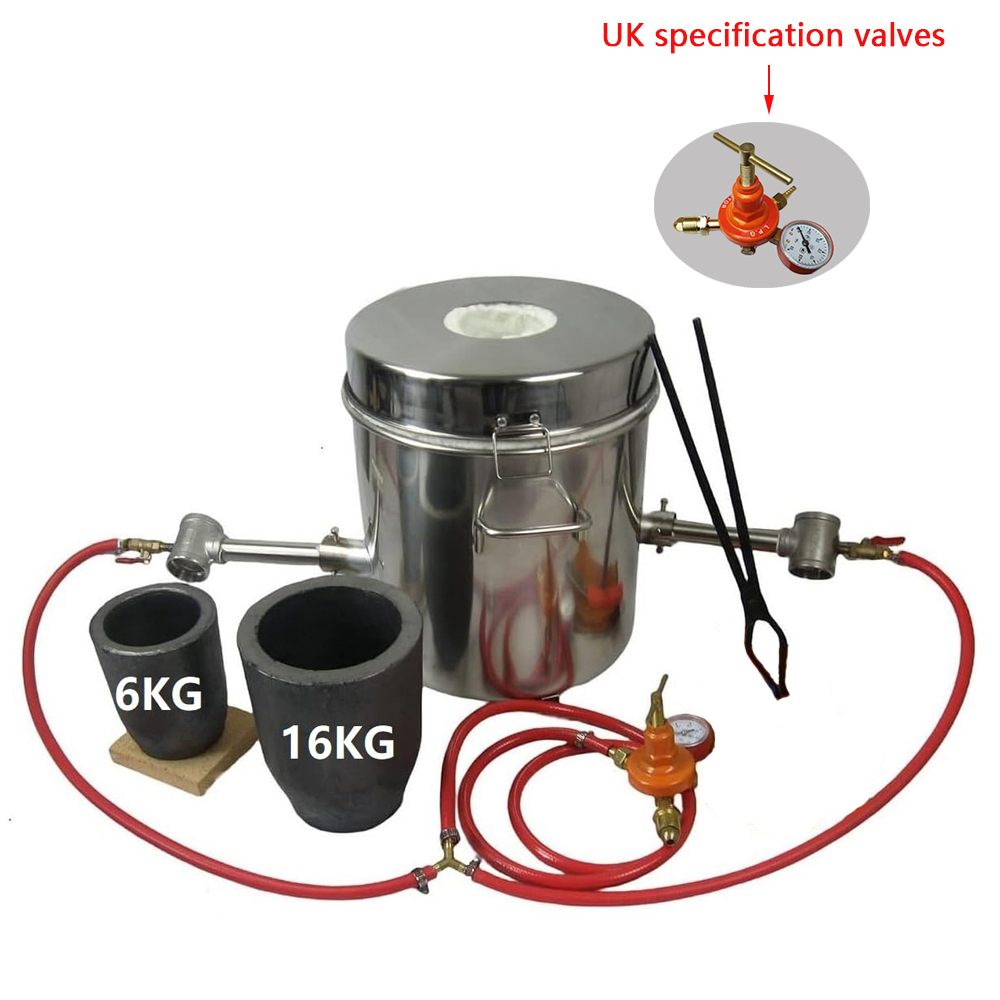

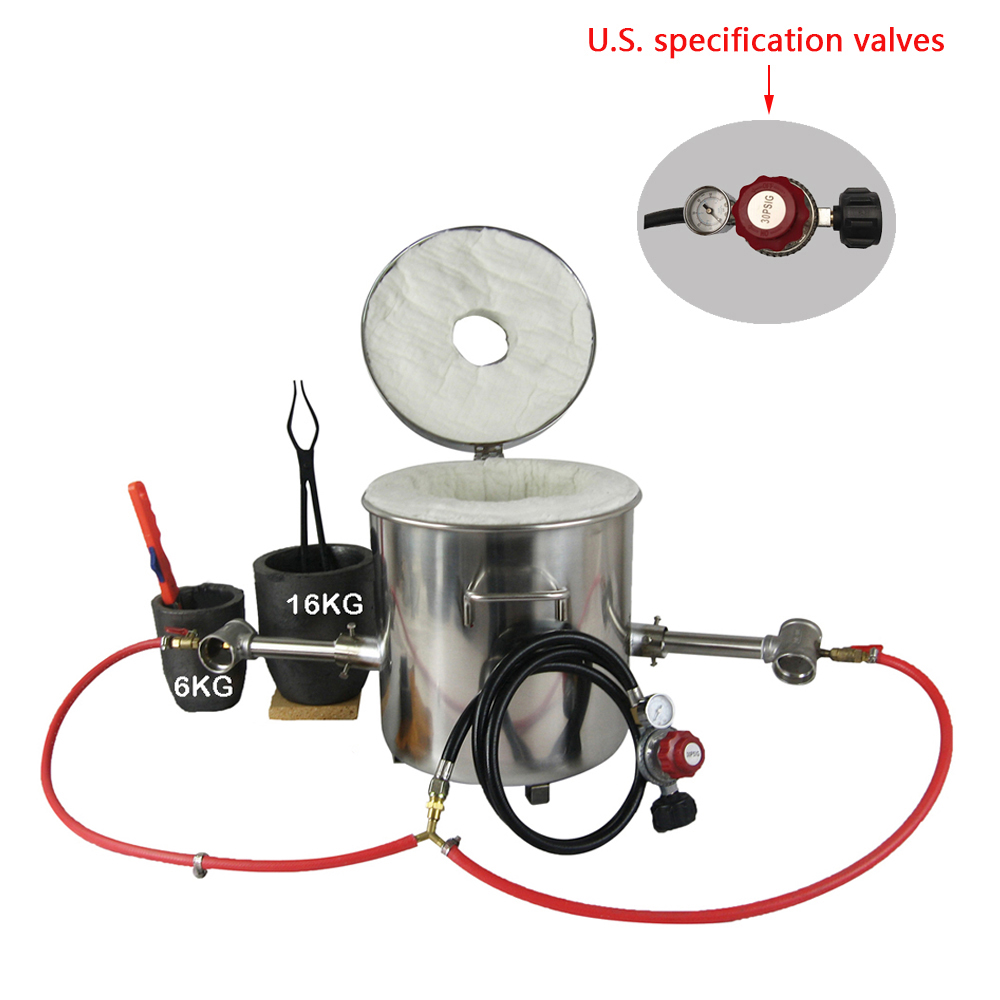

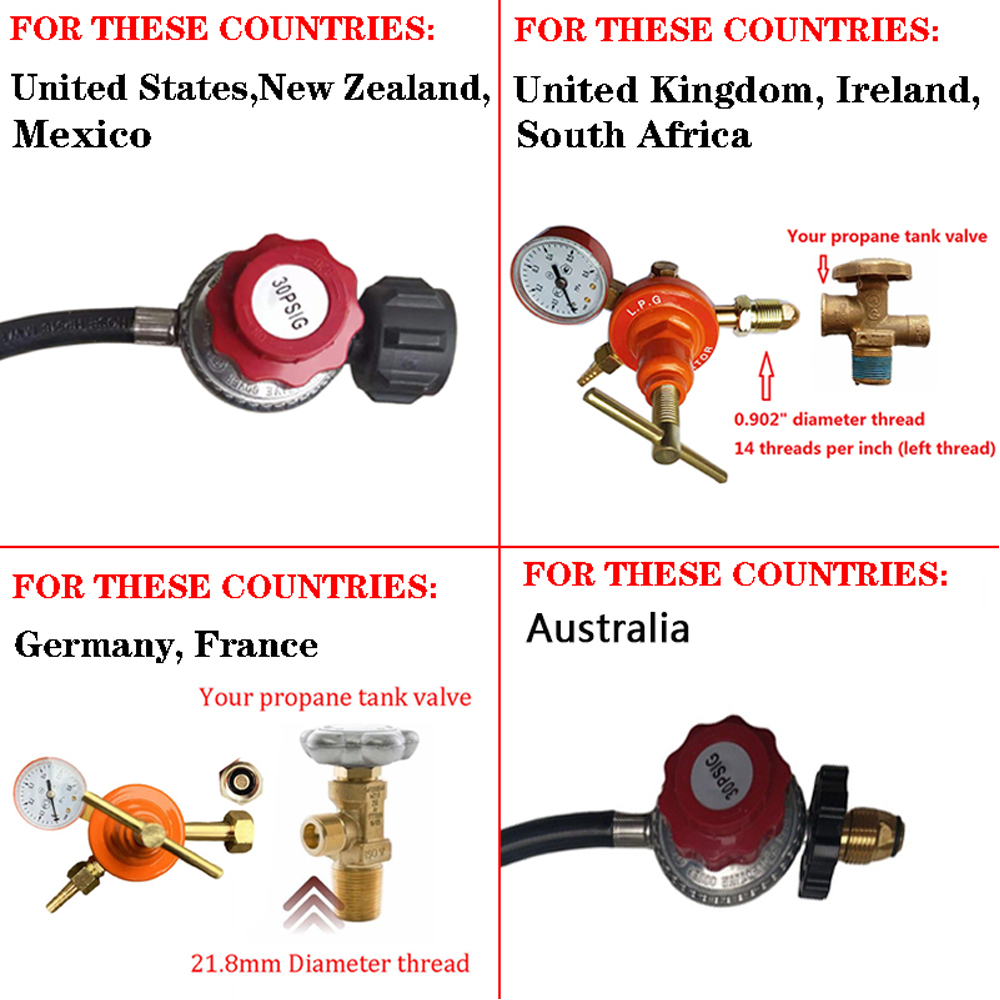

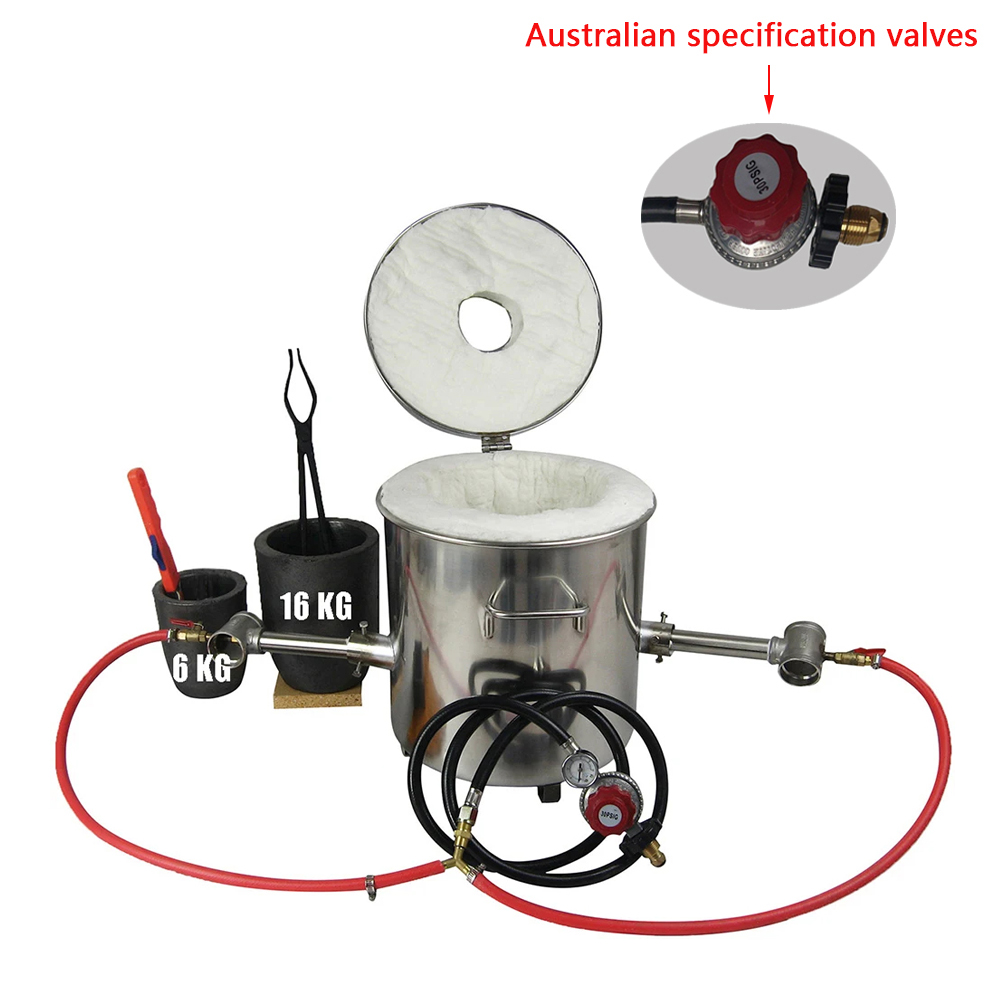

5. Adjustable high pressure gas regulator with gauge from 0–30 psi , 5 ft (1.5m) long hose,USA certificated;

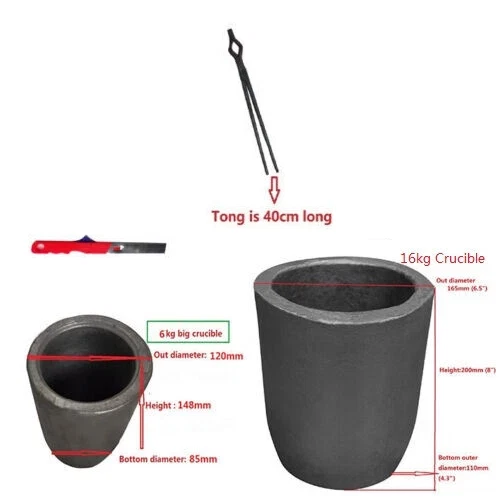

6. 16 KG Crucible can load 16 kg brass or 5 kg aluminum or 19 kg silver;
6 kg Crucible can load 6 kg brass or 1.8 kg aluminum or 7 kg silver;
7. Graphite casting Mold: 113 ML capacity, size is 125*60*40 mm, can melt 2 kg gold, 1.2 kg silver, 1kg copper.
8.One carbon graphite mixing stirring rods : 8X300mm long;Carbon rods are used to stir precious metals, scrap while melting.

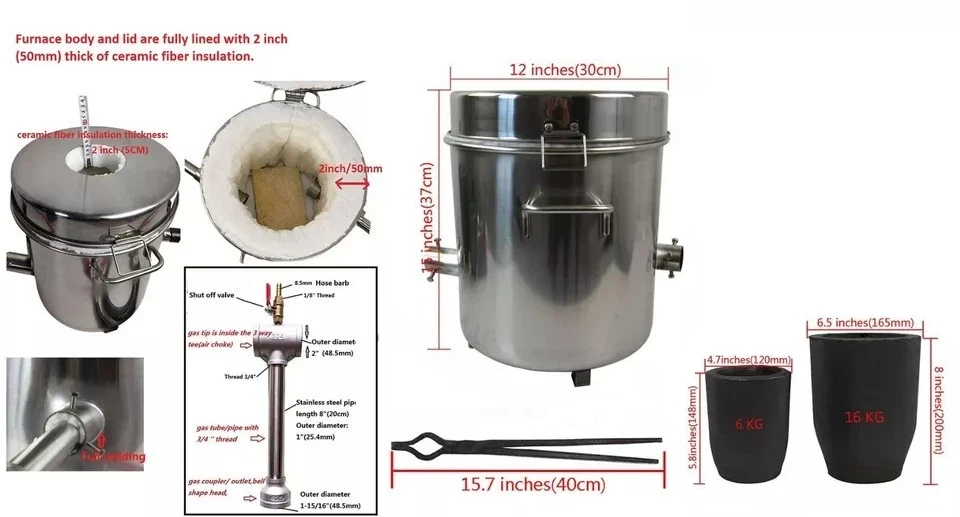

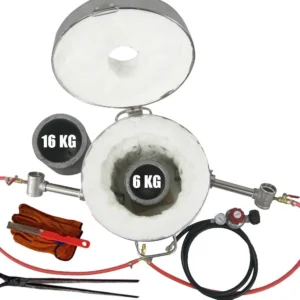

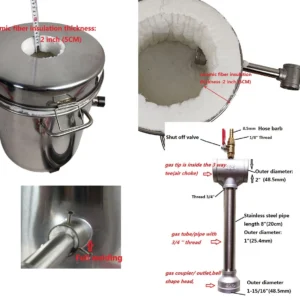

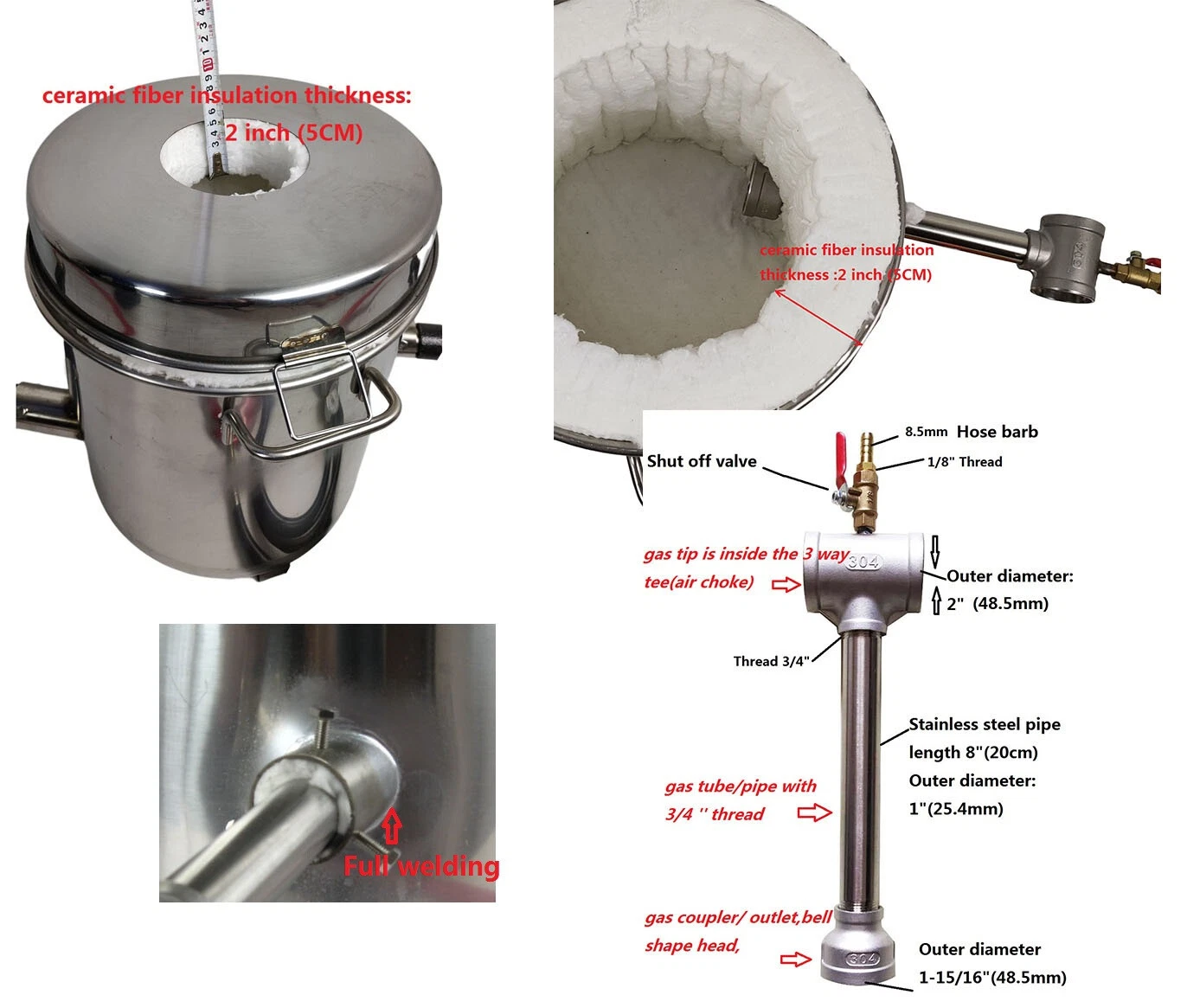

9. Furnace body and lid are fully lined with 2 inch of ceramic fiber insulation. Furnace floor lined with 3 inch of ceramic insulation and firebrick .You only need a propane gas bottle/tank ( like 20,30 or 50 LB ).

Our special advantage:
1. Furnace body is made of stainless steel ( 1mm thick) ,easy to clean,highly resistant to corrosion, lightweight and strong enough for a people to stand on the body, see my Ebay photo. superior strength and durability. Other seller’s black oil painting is easily burnt or discolour in long time using.
2. Dual burner can save 50% time and 20% gas cost.
3. Many other seller’s burner head may be melted damaged after long time using in high temperature flame ,so you had to change the whole burner. But our bell shape burner head can be changed because it is connected by thread, you can buy replacement in local shop cheap and easily .
4. You also can use only one burner by shut off the valve ,and block one hole on furnace body with my additional ceramic wool.

Kind remind:
1. Do not use it to melt iron, that will shorten the life of the furnace.
2. Graphite crucible is consumable, you can change a new one according to your requirement.
3. Use safety goggles, mask as well as gloves while casting metals.
4. The ceramic insulation blanket is not asbestos . Asbestos has been forbidden many years ago.
